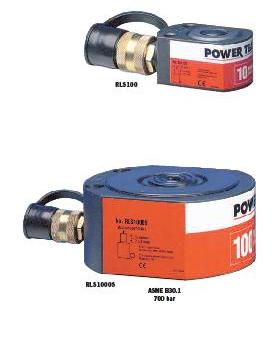

Bronze plated piston rod for heavy duty service
From 1(5/8") to 4" retracted height |
|
Order
No. |
Cyl.
Cap.
(tons)* |
Stroke
(in.) |
Re-
tracted
Height
(in.) |
Oil
Cap.
(cu.in.) | |
| RLS50 |
5 |
9/16 |
1(5/8) |
0.6 |
| RLS100 |
10 |
7/16 |
1(3/4) |
1.0 |
| RLS200 |
20 |
7/16 |
2 |
2.0 |
| RLS300 |
30 |
1/2 |
2(5/16) |
3.2 |
| RLS500S |
50 |
5/8 |
2(5/8) |
6.0 |
| RLS750S |
75 |
5/8 |
3(1/8) |
9.9 |
| RLS1000S |
100 |
5/8 |
3(3/8) |
12.3 |
| RLS1500S |
150 |
9/16 |
4 |
17.2 |
Highlights :
* All ramsare date-coded and max. rated pressure and
capacity metal stamped
* Manufactured in-house
* Pioneered conformance with ANSI B30.1 standards
* Base mounting holes suitable for use at maximum
capacity
* Typical cylinder burst pressure range from 25,000 psi
(1.750 bar) to 35.0000psi(2,450 bar)
* Rams with glands nuts may be dead. ended at 10,000 psi
(700 bar)
* Assembled and tested by cerified assembled
* Eddy Current and/or Magnetic Particle inspected to detect
flaws in steel
* All parts/components packaged in special material to
prevent rust
* Baked epoxy finish
* Full coverage decals on "C" series cylinders/rams
* Higher quality product resulting in fewer warranty claims
* Remove material from O.D. to ensure flaws are removed.
Others use materials as drawn(rolled) at the mill
* Solid body cylinder - not welded like some competitors |
