POWERTEAM 유압제품

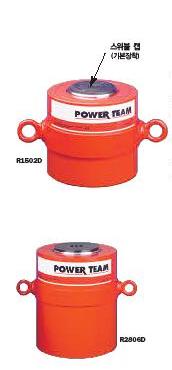

R 시리즈(복동식 실린더)
홈으로 이메일 사이트맵
HOME > POWERTEAM 유압제품 > HYDRAULIC RAMS > R 시리즈(복동식 실린더)




  • Built-in safety relief valve
  • Withstands full dead-end load
  • Swivel caps are standard equipment
    • Order
    No.    		 Cyl.
    Cap.
    (tons)*    		 Stroke
    (in.)    		 Re-
    tracted
    Height
    (in.)    		 Oil
    Cap.
    (cu.in.)
    R1002D Push-100 2 6(41/64) 41.2
      Pull-48     19.2
    R1006D Push-100 6 10(41/64) 123.6
      Pull-48     57.6
    R10010D Push-100 10 14(41/64) 206.0
      Pull-48     96.0
    R1502D Push-150 2 7(7/16) 61.4
      Pull-74     29.6
    R1506D Push-150 6 11(7/16) 184.2
      Pull-74     88.8
    R15010D Push-150 10 15(7/16) 307.0
      Pull-74     148.0
    R2002D Push-200 2 8(9/64) 82.6
      Pull-98     39.2
    R2006D Push-200 6 12(9/64) 247.8
      Pull-98     117.6
    R20010D Push-200 10 16(9/64) 413.0
      Pull-98     196.0
    R2802D Push-280 2 9(13/64) 113.4
      Pull-118     47.2
    R2806D Push-280 6 13(13/64) 340.2
      Pull-118     141.6
    R28010D Push-280 10 17(13/64) 567.0
      Pull-118     236.0
    R3552D Push-355 2 13(21/32) 141.8
      Pull-118.5     47.4
    R3556D Push-355 6 17(21/32) 425.4
      Pull-118.5     142.2
    R35510D Push-355 10 21(21/32) 709.0
      Pull-118.5     237.0
    R4302D Push-430 2 14(53/64) 173.2
      Pull-149     59.6
    R4306D Push-430 6 18(53/64) 519..6
      Pull-149     178.8
    R43010D Push-430 10 22(53/64) 866.0
      Pull-149     298.0
    R5652D Push-565 2 16(19/32) 226.2
      Pull-192     76.8
    R5656D Push-565 6 20(19/32) 678.6
      Pull-192     230.4
    R56510D Push-565 10 24(19/32) 1131.0
      Pull-192     384.0

    Unique to Power Team

     * All cylinders/rams are tested to 125% capacity before
       leaving the factory

     * Cylinders bore are rooler burnished to harden surface
       and provide smoother surface to increase seal life by additional
       30%

     * All rams are covered by Power Team Lifetime Marathon Warranty
