* Rugged all steel construction
* Heavy-duty, formed sheet metal handle
* Carry hangles on most models
* Fill cap gasket acts as safety valve (except P12 & P300)
* Two-speed models available
* A variety of six reservoir sizes
* Heat treated handle bearing surfaces (only P157/P159)
* Ductile iron bodies
* Max safety relief valve
* All units 100% tested
* Relief valve inboard of check valve system | |
|
For
Use With |
Order
No. |
Valve
Type |
Max.
Press.
Stages |
Vol.
Per Stroke
(cu. in.) |
Reservoir
Cap.
Usable* |
Oil
Port |
Prod
Wt.
(Ibs.) | |
| Single-Acting Cylinders |

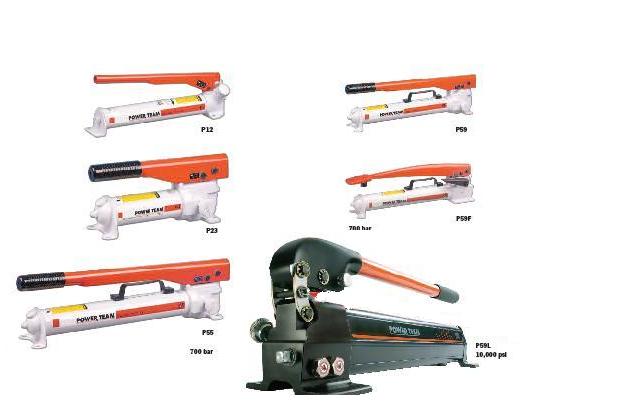

P12 |
2-way |
10,000 psi |
.069 |
12 cu. in. |
9 cu. in. |
(3/8")NPTF |
5.7 |
| P19 |
1st:325 psi
2nd:10,000psi |
.305
.091 |
24.4 cu. in. |
20 cu. in. |
6.6 |
| P23 |
3,000 spi |
.160 |
23.8 cu. in. |
20.3 cu. in. |
12.0 |
| P55 |
10,000 psi |
.160 |
55 cu. in. |
45 cu. in. |
15.8 |
| P59 |
1st:325 psi
2nd:10,000psi |
.662
.160 |
17.2 |
| P59F |
.55
.13 |
14.0 |
| P157 |
1st:1,400 psi
2nd:10,000psi |
.65
.160 |
152 cu. in. |
137 cu. in. |
26.7 |
| Double-Actiong Cyl. |
P157D |
4-way |
28.8 |
| Double-Actiong Cyl. |
P159 |
2-way |
1st:325 psi
2nd:10,000psi |
260
.160 |
26.2 |
| Double-Actiong Cyl. |
P159D |
4-way |
27.9 |
| Double-Actiong Cyl. |
P300 |
2-way |
1(1/2)GAL. |
310 cu. in. |
55.3 |
| Double-Actiong Cyl. |
P300D |
4-way |
57.0 |
| Double-Actiong Cyl. |
P460 |
2-way |
7.35
.294 |
2(1/2)GAL. |
460 cu. in. |
54.9 |
| Double-Actiong Cyl. |
P460D |
4-way
(9500) |
57.9 |
| |
|
|
